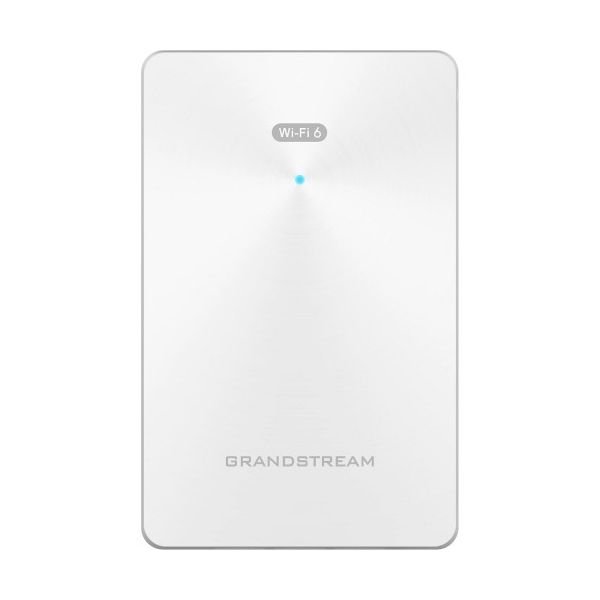

Access Point Grandstream GWN7661E In-Wall Wi-Fi 6

The GWN7661E is an in-wall AX3000 Wi-Fi 6 access point designed for offices, hotels, homes, apartments and more. It provides dual-band Wi-Fi 6, a sophisticated antenna design for up to 3Gbps wireless speeds, 100-meter coverage range, 2x2:2 (2.4G) and 3x3:2 (5G) MU-MIMO technology. Provides three Gigabit network ports to provide IP phones, TVs, computers and similar devices with Ethernet while also providing an uplink Gigabit network port with PoE/PoE+. This Wi-Fi 6 access point is designed to be mounted in-wall to provide a clean and professional installation that blends into the surrounding environment. To ensure easy installation and management, the GWN7661E includes a built-in controller embedded within the product’s web user interface. The GWN7661E can also be managed by GDMS and GWN Manager, Grandstream’s free cloud and on premise network management platforms. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and 256 concurrent clients per AP, the GWN7661E is an ideal Wi-Fi access point for in-wall installations and small-to-medium businesses deployments. Key Features & Benefits: 3 Gbps wireless throughput and 4x Gigabit wireline ports 2x2:2 (2.4G) and 3x3:2 (5G) MU-MIMO and OFDMA technology Supports up to 256 concurrent Wi-Fi client devices Self-power adaptation upon auto-detection of PoE or PoE+ Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management 3 Year Warranty Specifications: Model: GWN7661E Color: White Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax Mounting: In-wall mountable Antennas: 2x dual-band internal antennas, 1x 5G internal antenna Antenna1 2.4G gain 3.0dBi, 5G gain 5.0dBi Antenna2 2.4G gain 2.5dBi, 5G gain 4.5dBi 5G Antenna gain 4.5dBi Wi-Fi Data Rates: 5G: IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 1732 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Frequency Bands: 2.4GHz Radio: 2412 - 2483.5 MHz 5GHz Radio: 5150 - 5895 MHz Channel Bandwidth: 2.4G: 20 and 40 MHz 5G: 20, 40, 80 and 160 MHz MIMO: 2×2:2 2.4GHz 3×3:2 5GHz Coverage Range: Up to 100 meters Maximum TX Power: 2.4G: 24dBm, 5G: 26dBm Receiver Sensitivity: 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;802.11ax 80MHz: -56dBm @MCS11 MCS11; 802.11ax 160MHz: -52dBm@ MCS11 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11 SSIDs: 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) Concurrent Clients: 256 Network Interfaces: 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock LEDs: 1 tri-color LED for device tracking and status indication Network Protocols: Pv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM QoS: 802.11e/WMM, VLAN, TOS Network Management: Embedded controller can manage up to 50 local GWN APs GDMS (Networking) offers a free cloud management platform for unlimited GWN devices GWN Manager offers premise-based software controller for up to 3,000 GWN APs Power & Green Energy Efficiency: Support 802.3az PoE 802.3af/ 802.3at; The maximum output of all PSE ports is 12W; Maximum Power Consumption: 25W Environmental: Operation: 0°C to 45°C Storage: -30°C to 60°C Humidity: 5% to 95% Non-condensing PartnerNET Grandstream GWN7661E In-Wall WiFi 6 Access Point Datasheet Physical: Unit Dimension: 135mm(L) x 86mm(W) x 38.5mm(H); Unit Weight: 241g Entire Package Dimension: 176mm(L) x 118.5mm(W) x 65mm(H); Entire Package Weight: 361g Package Contents: GWN7661E Mounting Kits Quick Installation Guide Compliance: FCC, CE, RCM, IC Χαρακτηριστικά Κατασκευαστής Grandstream Τύπος Προϊόντος Indoor WiFi Access Point Τεχνολογία 802.11ax (Wi-Fi 6) Aggregate Wireless Throughput 3Gbps Antenna Dual-band 2x2:2 MU-MIMO Embedded Controller YES Max. Concurrent Clients 256 Max. Coverage Range 100m Ethernet Port Gigabit POE ΝΑΙ Wireless ΝΑΙ Εγγύηση 3 Χρόνια
