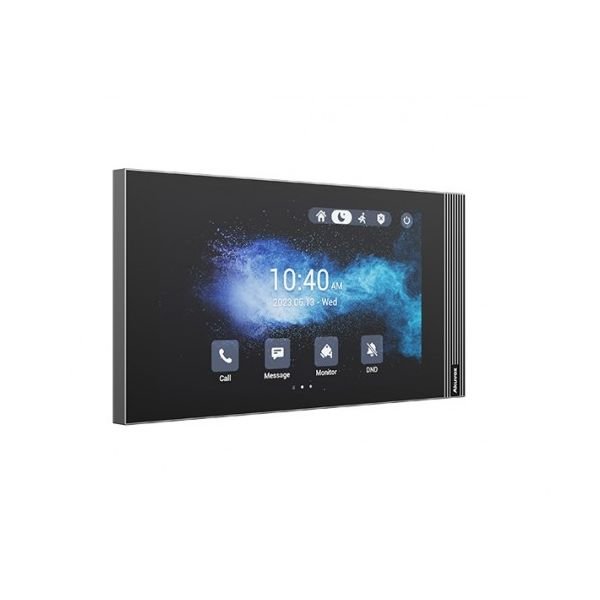

Akuvox S562 On-Wall Mounted HD IP Indoor Unit with 7-Inch Capacitive Touch Screen

The Akuvox S562 is an indoor, on-wall or desktop mountable, SIP multifunctional communicator with a Linux OS, a brilliant 7" capacitive touch LCD screen with 1024x600 resolution, HD broadband audio and 802.3af Power-over-Ethernet (PoE). With 8 channel inputs, 1 embedded relay and RS485 support, this indoor unit supports integration with surveillance cameras, allowing users to stream and monitor live footage from both door phone cameras and 3rd party security cameras. The S562 features a compact body and stylish design, making it perfect for limited spaces, blending well into modern interiors, ideal indoor unit for application scenarios in villas, apartment and office complexes, home automation systems and many more. Key Features & Benefits: Ultra-clear & stylish appearance 7-inch capacitive touch screen with energy saving mode Two-way audio communication with other units in the network Complies with SIP standard for easy integration with every SIP capable PBXes Powered by PoE or external source Support US or European electrical wall box mounting Physical & Power: Front panel: Plastic RAM / ROM: 128MB / 128MB Display: 7 Inch TFT LCD 1024x600 resolution Screen: 7 Inch capacitive touch screen RS485 port: Support Relay out: 1 Bell in: 1 I/O: 8 Microphone: -42dB Speaker: 4Ω / 2W Ethernet ports: 2xRJ45, 10/100Mbps adaptive 802.3af Power-over-Ethernet 12V DC connector (if not using PoE) Installation: Wall-mounted & Desktop Dimension (LxWxH): 216.4 x 118.8 x 21.7mm Working Humidity: 10~90% Working Temperature: -10°C ~ 45°C Storage Temperature: -20°C ~ 70°C Touch Screen Display: Display Mode: Normally white, Transmissive LCD Size: 7inch (Diagonal) Resolution: 1024x600 Contrast ratio: 600:1 Luminance: 250 cd/m² Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower Touch Screen: Projected capacitive Audio: SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: Out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Video: Streaming formats: H.264 Networking: Supported protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP Deployment & Maintenance: Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Firmware upgrade System logs (include door access logs) PartnerNET Akuvox S562 HD IP Indoor Monitor Datasheet Packaging Contents: 1x S562 1x Wall-mounting bracket 2x ST4x20 crosshead screw 1x Allen wrench 1x 8-Pin cable 1x 10-Pin cable 1x Diode 2x M4x20 crosshead screw 2x #6-30 Philipps machine screw 2x ST3x20 crosshead screw 2x Plastic wall anchors Βίντεο ανάλυση HD Τεχνολογία IP HD Audio ΝΑΙ Οθόνη Αφής ΝΑΙ Εγγύηση 1 Χρόνο Χαρακτηριστικά Θυροτηλεφώνων Κατασκευαστής Akuvox Τύπος Προϊόντος IP Indoor Unit LCD Display ΝΑΙ POE ΝΑΙ Relays 1 Επίτοιχη Tοποθέτηση ΝΑΙ Προτιμώμενη Τοποθέτηση Indoor/outdoor
