Barcode Scanner Champtek SD320 USB / Serial / Wedge

89,00 €

Διαθεσιμότητα: Σε απόθεμα

SKU

SCA-DIG-CHA-320

Λεπτομέρειες

Χωρίς Βάση.

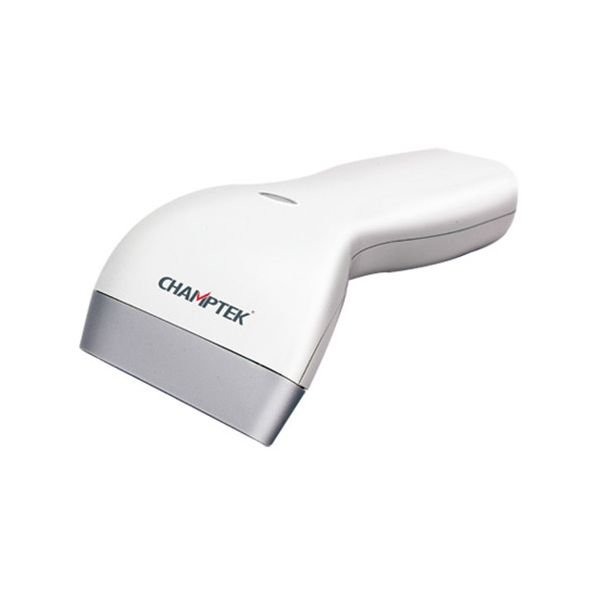

This well-designed handheld contact type linear imager scanner has inherited the characteristic of “high performance with low price” from its previous series. Aside from the principle of excellence mechanical design, it also installs with many user-friendly operations; detachable cable, 4-in-1 interface, and 2 years product warranty; these have added-up additional values to it.

As far as the performance, this scanner provides reliable scanning depth from contact to 50mm, collaborating with POS or regular cash register system, user is able to program this device to “continuous mode ” or any other scan mode if needed,

Aid in various major barcodes, hand-on software-programming function, this economical-type barcode scanner is the best choice ever.

Light Source	632nm Red LED
Depth of Field	Contact to 50mm @ 20mil/ 0.5mm, PCS90%, Code39
Width of Field	90mm (80mm at window)
Processor Type	32bits
Scan Rate	120 scans per second ± 10%
Resolution	4mil/0.1mm@PCS90%
Print contrast ratio	30%
Indicator	Beep and LED (Good read Green)
Interface	KBW/RS232/USB (HID or Virtual Com port)
Dimensions (WxHxL)	90 x 56.2 x 173.5 mm
Weight (w/o cable)	approx. 4.87oz/138g (w/o cable)
Electronic
Input Voltage	DC +5V ± 5%
Operating current	124 mA Max.
Standby current	72mA Max.
Environmental
Ambient light	Up to 5,000 Lux Max.
Operating temperature	0°C to 50°C (32°F to 122°F)
Storage temperature	-20°C to 70°C (-4°F to 158°F)
Relative Humidity	20% to 95% (Non-condensing)
Drop resistance	47.24 inches (120cm)
Symbologies	Automatically discriminates major standard 1D bar codes, include GS1 databar - Omnidirectional, Expanded and Limited.
