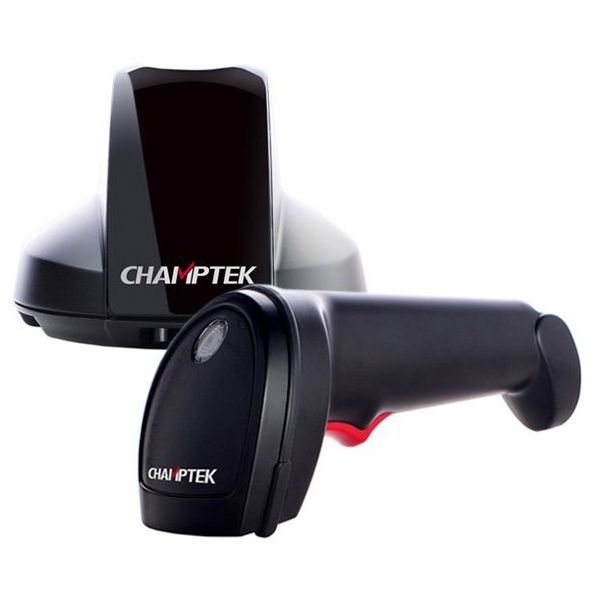

Barcode Scanner Champtek SG600 Bluetooth
280,00 €
Διαθεσιμότητα:
Σε απόθεμα
SKU
SCA-DIG-CHA-600
• Support major 1D codes, GS1 Databar linear and stacked Codes
• Automatic detect reading mode
• Reading distance up to 50cm (20mil/0.5mm@code39 pcs90%)
• Smart detection, reading speed up to 500 scans per second
• 3 in 1 Combo interface that changes interface by replacing cable
• Equipped with Bluetooth V2.1 Class 1 technology, range up to 100m in open space
• Supports both SPP and HID profiles can easily pair up with other Bluetooth V2.1 compatible mobile equipments or systems
• Support Batch transmission mode, memory capacity stores up to 30,000 inputs of EAN13 barcodes supports IP42 sealing protection
| Light Source | 632nm Red LED |
| Processor type | 32bits |
| Depth of Field | Up to 500mm@20mil/ 0.5mm, PCS90%, Code39 |
| Scan Rate | Smart detection, up to 500 scans per second |
| Resolution | 4mil/ 0.1mm @ PCS90%, Code39 |
| Print contrast ratio | 30% |
| Indicator | Beep and LED (Good read Green) |
| Interface | RS-232/USB (HID or Virtual Com port)/Keyboard wedge |
| Dimensions (WxHxL) | 71.13 x 62.61 x 169.27 mm (Scanner) |
| 112.18 x 84.64 x 130.6 mm (Cradle) | |
| Weight | Scanner: Approx. 175g/ 6.17oz (include Battery), |
| Cradle: Approx. 150g/ 5.29oz | |
| Input Voltage | DC +5V ± 5% |
| Operating current | Scanner 200mA, Cradle 70mA |
| Standby current | Scanner 50mA, Cradle 55mA |
| Wireless Standard | Bluetooth V2.1 Standard, support both SPP and HID profiles |
| Battery type | Li-ion 3.7V, 2600mAh |
| Charge Time | Approx. 5 hours |
| Reads per charge | 50,000 scans in continuous read |
| Radio Transmission Range | Up to 100m/328.08 ft. in line of open sight |
| Ambient light | 100,000 Lux Max. |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity | 20% to 95% (Non-condensing) |
| Drop resistance | 59.05 inches (150cm) |
| Symbologies | Automatically discriminates major standard 1D bar codes, include GS1 databar - Omnidirectional, Expanded and Limited linear and stacked codes. |
| Sealing | Designed to IP42 water and dust protection |
| ΕΑΝ | SCA-DIG-CHA-600 |
|---|---|
| Εγκατάσταση | Όχι |
| Χρώμα | Μάυρο |
| Brand | Champtek |
| Σύνδεση με καλώδιο | Όχι |
