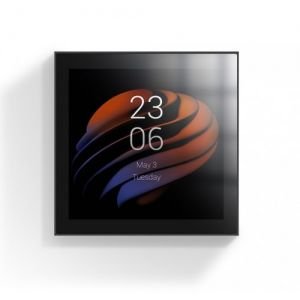

The Akubela HyPanel Lux smart home touch panel offers unparalleled interactive experiences. Featuring voice-controlled home automation, touch screen control, a rotary knob and physical buttons, this indoor control panel caters to control preferences of different users.An all-in-one device that unlocks extraordinary smart living by combining an intercom, home automation, a ZigBee gateway, home security, embedded temperature and humidity sensors, wall switches and more, A true smart home can be expanded to fit your lifestyle into the future, for example, adding a security camera after the arrival of children. Supporting ZigBee, Wi-Fi, Bluetooth, Ethernet, and IR remote control, the Lux connects you to a growing ecosystem of smart devices and traditional home appliances. No more sacrificing privacy for comfort, or the other way around. Selecting the Off-Cloud mode on the Lux, you can still enjoy most smart home features by using the local network. In so doing, all your data are stored safe and secure within the house.
Key Features & Benefits:
2.1-inch touch screen with 4 AG-glass physical buttons
Infinite metal knobs with damping and ratchet mode
Light ring with more than 16 million colors
Built-in sensors and Infrared remote control
Adaptive, supports horizontal and vertical installation
Android 10 OS and High-powered Qualcomm chip
All-in-One, smart intercom, ZigBee gateway and home automation device
Specifications:
Model Number: RT61-PoE-EU
Color: Black
Power Supply: IEEE802.3af PoE & 12 ~ 24VDC
Operation System: Android 10
RAM/ROM: 1GB/8GB
Wi-Fi: IEEE802.11 b/g/n, @2.4GHz/5GHz
Bluetooth: Bluetooth 4.2
Ethernet Port: 1×RJ45, 10/100Mbps adaptive
ZigBee: ZigBee 3.0
RS485 Port: Supported
Infrared Remote Control: Supported
Microphone: Dual microphones, -42dBV
Speaker: Dual speakers, 8Ω/1.5W
Appearance:
Material: V0 fireproof PC+4 AG glass buttons+
1 metal knob
Screen: 2.1’’ multi-touch screen
Screen Resolution: 480×480 pixels
Screen Brightness: 210 cd/㎡
Built In Sensors:
Proximity Sensor: 30 ~ 60cm
Light Sensor: Low-level lux detection
Temperature Sensor: ±1℃, range: -10 ~ 55℃
Humidity Sensor: ±5%, range: 10 ~ 90%RH, without condensation
Gravity Sensor: 3-axis
Working Environment:
Environment: For indoor use only
Working Humidity: 10 ~ 90%RH, without condensation
Working Temperature: -10 ~ 55℃
Storage Temperature: -30 ~ 70℃
Installation:
Installation: Wall flush mounting
Flush Mounted Module: EU/UK standard
Dimensions:
Item Net Dims: 86.5 x 158.5 x 68.2
Item NW: 1kg
Item GW (with package): 1.2kg
PartnerNET Akubela RT61-PoE-EU HyPanel Lux Datasheet
Application Scenario:
Villas
Apartment complexes
Home automation systems
Modern interiors
Χαρακτηριστικά
Τεχνολογία IP
HD Audio ΝΑΙ
Οθόνη Αφής ΝΑΙ
Bluetooth ΝΑΙ
Wi-Fi ΝΑΙ
POE ΝΑΙ
Εγγύηση 1 Χρόνο
Χαρακτηριστικά Θυροτηλεφώνων
Κατασκευαστής Akubela
Τύπος Προϊόντος IP Indoor Unit
LCD Display ΝΑΙ
Εντοιχισμένο ΝΑΙ
Προτιμώμενη Τοποθέτηση Indoor
BUI-PAR-AKU-RT61 POE
