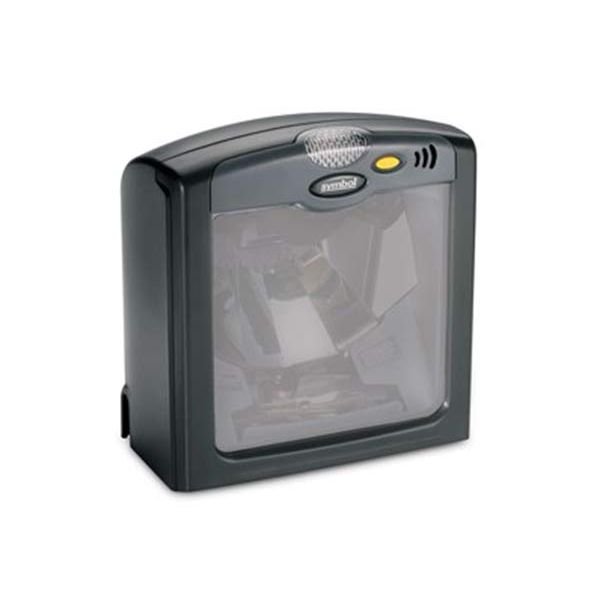

Barcode Scanner P.O.S ZEBRA LS7708

155,00 €

Διαθεσιμότητα: Σε απόθεμα

SKU

SCA-ALB-ZEB-LS7708

Λεπτομέρειες

Physical Characteristics

Dimensions without stand:
Height: 6.3 in (16 cm)
Width: 5.98 in (15.2 cm)
Depth: 3.73 in (9.5 cm)
Weight: Scanner only: 2 lbs. (907 g)
Power Source: Power drawn from Host terminal or external power supply; depends on Host type
Voltage: 5.5 VDC to 4.75 VDC measured at host terminal or external power supply
Typical/Max Current: 390mA/500mA
Power Source: 2 watts
Mounting Options: Integral Mounting Bracket
Color: Twilight Black

Performance Characteristics

Light Source: 650nm visible laser diode
Print Contrast: 25% minimum reflective difference
Scan Patterns: Static/Raster - Omnidirectional:24/120 scan lines
Scan Rate: Static/Raster - Omnidirectional: 2400 scans/second
Typical Working Range:
5 mil: (38%) 0.5 in - 2.5 in (1.25 cm - 6.4 cm)
7.8 mil: (60%) 0 - 5.0 in (0 -12.7 cm)
10.4 mil: (80%) 0 - 7.5 in (0 -19.0 cm)
13 mil: (100%) 0 - 10.0 in (0 - 25.4 cm)
Depth of Field: 0-10 in/25 cm @ 13 mil (100% UPC/EAN)
Minimum Resolution1: 5 mil
Decode Capability: UPC/EAN/JAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 128, ISBT 128, Code 39, Code 39 Trioptic, Interleaved 2 of 5, Discrete 2 of 5, Code 93, Code 11, Codabar, RSS Variants
Interfaces Supported: USB, RS 232, IBM® 468X/9X, Keyboard Wedge, and Synapse™ (allows connectivity to virtually every POS host type), SPCI (for 123 Scan)
