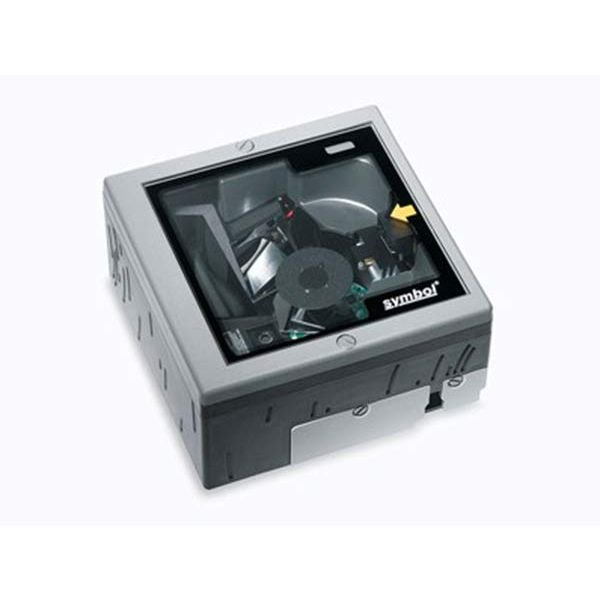

Barcode Scanner P.O.S ZEBRA LS7808

580,00 €

Διαθεσιμότητα: Σε απόθεμα

SKU

SCA-ALB-ZEB-LS7808

Λεπτομέρειες

Physical Characteristics

Dimensions: 6 in. W x 6 in. L x 3.1 in. H
152 mm W x 152 mm L x 79 mm H
Weight: 1.9 lbs/0.85 kg
Voltage and Current: 5.0 Volts ± 5% @ 450mA (Nominal)
Light Source: 670 nm visible laser diode

Performance Characteristics

Scan Pattern: 18 interlocking scan lines
Scan Rate: 1,800 scan lines per second
Motor Speed: 5,500 RPM
Depth of Field: 0 to 6 in./0 to 15cm, UPC/EAN 100%
Min. Resolution: 5 mil
Typical Working Range:
5 mil: (38%) 0 – 0.5 in. / 1.27 cm
7.8 mil: (60%) 0 – 4 in. / 10.16 cm
10.4 mil: (80%) 0 – 5 in. / 12.7 cm
13 mil: (100%) 0 – 7 in. / 17.78 cm
Decode Capability: UPC-A, UPC-E, UPC-E1, EAN 8/13, JAN 8/13, UPC/EAN with Supplementals, Code 39, Code 39 Full ASCII, Interleaved 2 of 5, Discrete 2 of 5, Code 128, UCC/EAN 128, ISBT 128, Codabar/NW7, Code 93, Code 11, RSS Variants
Interfaces Supported: Each Symbol LS7808 features on-board multiple interface supporting: RS-232C (Standard, Nixdorf, ICL, & Fujitsu); IBM 468X/469X; Keyboard Wedge; USB (Standard, IBM SurePOS, Macintosh); Synapse (allows for connectivity to all of the above plus many non-standard interfaces)
Roll: 360°
Pitch: -30° to 60°
Yaw: ± 45°
Min Bar Code Width: 0.127 mm (5mil)
