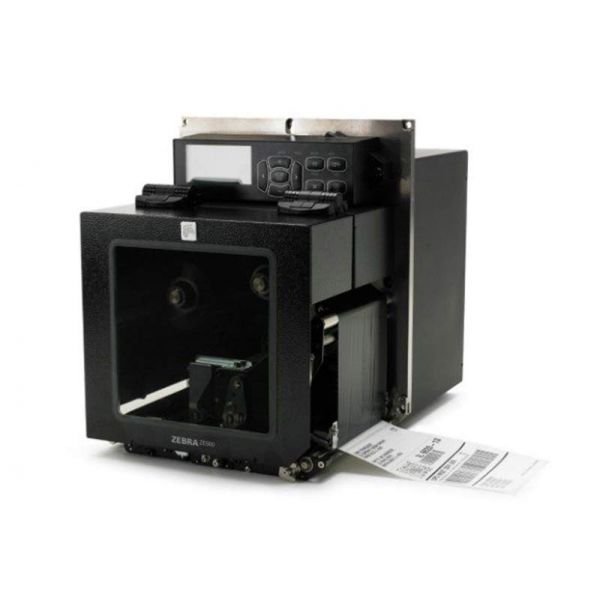

Εκτυπωτής Ετικετών Zebra ZE500 Series Print Engine

ZE500-4:
Maximum print width
• 104mm (4.1")
Media specification
• Label and liner width: 0.625" (16mm) to
4.5" (114mm)
• Minimum length with back feed: 0.5" (13mm)
• Minimum length without back feed:
0.25" (6.5mm)
• Minimum length in stream mode: 0.25" (6.5mm)
• Maximum length: 39" (990mm)
• Maximum continuous media print length:
150" (3,810mm)
• Ribbon width: 1" (25.4mm) to 4.2" (107mm)
Resolution
• 203dpi (8 dots/mm) or 300dpi (12 dots/mm)
Maximum print speed
• 12" (305mm) per second (203 and 300dpi)
ZE500-6:
Maximum print width
• 6.6" (168mm)
Media specification
• Label and liner width: 3" (76mm)
to 7.1" (180mm)
• Minimum length with back feed: 3" (76mm)
• Minimum length without back feed: 1"
(25.4mm)
• Minimum length in stream mode: 1" (25.4mm)
• Maximum length: 39" (990mm)
• Maximum continuous media print length:
150" (3,810mm)
• Ribbon width: 3" (76mm) to 7.1" (180mm)
Resolution
• 203dpi (8 dots/mm) or 300dpi (12 dots/mm)
Maximum print speed
• 12" (305mm) per second (203dpi)
• 10" (254mm) per second (300dpi)

Labels
Media thickness (label and liner)
• ZE500-4: 0.0053" (0.135mm) to 0.010" (0.254mm)
• ZE500-6: 0.003" (0.076mm) to 0.012" (0.305mm)
Media types
• Continuous, die-cut or black mark
Ribbons
Max. roll size
• 4" (101.6mm) O.D. on a 1" (25.4mm) I.D. core
Standard length
• 1,968 (600m) capacity
